Putting bigger tires on a CJ-5, CJ-7, or CJ-8 is one of the most common changes people make. It also might be the most underestimated.
Most owners think in one dimension: more tire equals more clearance. True, in a simple sense. But a larger tire also changes how your CJ accelerates, brakes, steers, shifts, cools, and wears parts. It is not a cosmetic choice. It is a systems change.
Bigger tires do not just lift the Jeep. They load the Jeep.
Before you commit to a size, run through the CJ Foundation Checklist to confirm your baseline systems are honest. Gearing is Step 10, but brakes, steering, and cooling all factor in before you get there.
The Math
A bigger tire travels farther per revolution. That means for the same engine RPM, your CJ moves faster. Sounds great until you realize the engine now has less mechanical advantage to get there.
Think of it like this: bigger tires are a taller final drive ratio. You did not touch your gears, but you effectively changed them.
What you feel:
- Slower acceleration
- More downshifting on hills
- More clutch slip if you have a manual
- More heat in the transmission if you have an automatic
If you want to pick axle gears based on tire size, transmission, and how you actually drive your CJ, use the gearing guide below.

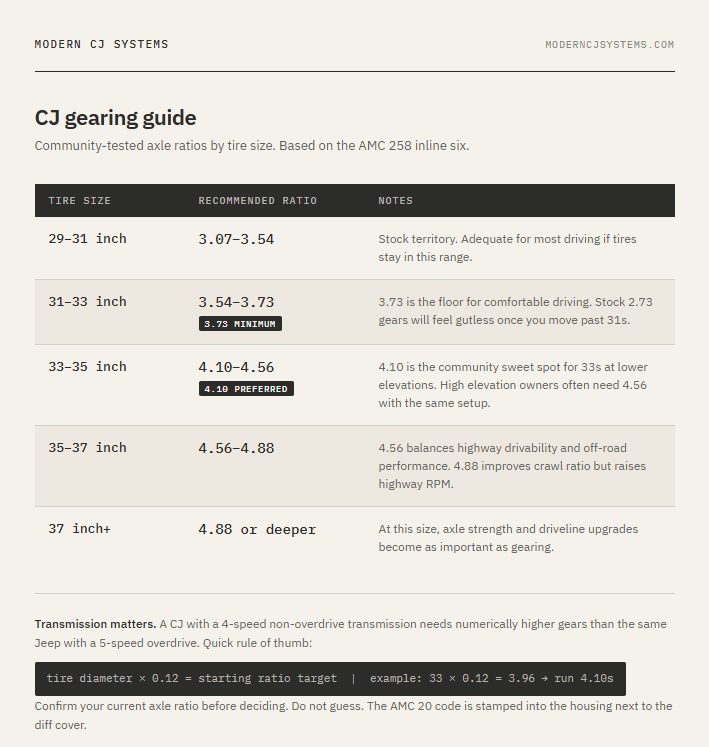

CJ Gearing Guide
Community-tested axle ratios by tire size. Based on the AMC 258 inline six.
| Tire size | Recommended ratio | Notes |
|---|---|---|
| 29-31 inch | 3.07-3.54 | Stock territory. Adequate for most driving if tires stay in this range. |
| 31-33 inch | 3.54-3.73 3.73 MINIMUM | 3.73 is the floor for comfortable driving. Stock 2.73 gears will feel gutless once you move past 31s. |
| 33-35 inch | 4.10-4.56 4.10 PREFERRED | 4.10 is the community sweet spot for 33s at lower elevations. High elevation owners often need 4.56 with the same setup. |
| 35-37 inch | 4.56-4.88 | 4.56 balances highway drivability and off-road performance. 4.88 improves crawl ratio but raises highway RPM. |
| 37 inch+ | 4.88 or deeper | At this size, axle strength and driveline upgrades become as important as gearing. |
Transmission matters. A CJ with a 4-speed non-overdrive transmission needs numerically higher gears than the same Jeep with a 5-speed overdrive. Quick rule of thumb: tire diameter x 0.12 = starting ratio target | example: 33 x 0.12 = 3.96 -- run 4.10s Confirm your current axle ratio before deciding. Do not guess. The AMC 20 code is stamped into the housing next to the diff cover. | ||
1) Effective Gearing: Your CJ Gets Taller Overnight
When you increase tire diameter, you reduce torque at the ground. That affects:
- Takeoff from a stop
- Highway passing
- Hill climbs
- Crawl ratio off road
This is why a CJ that felt fine on 31s can feel lazy on 33s, and downright unhappy on 35s -- especially with stock or mild axle gearing.
Common signs you have outgrown your gearing:
- You avoid top gear because it feels useless
- The Jeep feels like it is always searching between gears
- You have to use more throttle for normal driving
- Engine RPM feels too low at cruise and it lugs on grades
Practical checkpoint: Before you buy anything, write down your current axle ratio, transmission type, and tire size. If you do not know your axle ratio yet, do not guess. Confirm it, then decide. The AMC 20 axle code is stamped into the housing next to the diff cover.
A basic rule of thumb the community uses: multiply your tire diameter by 0.12 to get a starting point for your target gear ratio. 33 inches x 0.12 = 3.96, which points toward 4.10s. 35 inches x 0.12 = 4.20, which points toward 4.56s. This is a starting point, not a final answer -- transmission type matters significantly. A CJ running a 4-speed without overdrive needs numerically higher gears than the same Jeep with a 5-speed overdrive.
(ExtremeTerrain tire and gear ratio chart) (Novak gearing math guide for Jeeps)
If you change tire size without thinking about gearing, you are not upgrading. You are moving the problem.
2) Braking: Bigger Tires Raise the Workload
A larger tire usually weighs more. Even if the weight difference seems small, the rotating mass and leverage effect matter. Bigger tires increase:
- Rotational inertia, which the brakes must overcome
- Leverage against the brakes due to larger diameter
- Brake heat in repeated stops
What you feel:
- Longer stopping distances
- More pedal effort
- Brake fade sooner on hills
- A CJ that stops fine once, but not well ten times
Safety note: If your stopping distance is compromised, brakes move to the front of the project list. Steering feel is annoying. Braking confidence is non-negotiable.
Power is optional. Stopping is required.
3) Steering and Wander: Tire Size Magnifies Slop and Geometry
Larger tires do three things to steering:
- Increase leverage on every joint
- Increase scrub effects from wheel offset changes
- Make road grooves and crown more noticeable
If you had minor steering play on smaller tires, larger tires make it obvious. This is why a CJ can feel fine on stock tires, then wander after a tire size change, even if nothing else changed. Bigger tires also make bump steer and drag link angle issues easier to feel. If the steering system is already near the edge, larger tires push it past the line.
Practical checkpoint: After changing tire size, do not just align it. Inspect for free play first. Alignment cannot compensate for worn tie rod ends, ball joints, or loose wheel bearings.
The full steering diagnosis sequence is covered in why CJ steering wander happens.
4) Suspension and Driveline Angles: Clearance Has a Cost
To fit bigger tires, most people lift the CJ. Lifts change angles. Angles change behavior. Common side effects of lift plus bigger tires:
- Driveshaft vibration
- U-joint wear
- Pinion angle issues
- Reduced caster if the front axle rotates, especially on leaf-spring CJs
- More bump steer if drag link angle increases
This is why tire size upgrades often turn into a chain reaction. The tires themselves are not the whole story. The supporting geometry matters just as much.
Practical checkpoint: If you lift it to clear tires, confirm caster and set toe. A CJ that feels light on center after a lift is often telling you caster got reduced.
A lift is not just parts. It is a geometry change.
5) Axle Shafts, U-Joints, and Hubs: The Hidden Stress Test
A CJ drivetrain is tough, but it was designed around certain tire sizes. Bigger tires raise the torque demands on axle shafts, U-joints, and hubs. What changes:
- More shock load when a tire binds then releases
- More torque required to turn the tire in rocks or deep sand
- More stress on locking hubs and front axle joints
This is where driving style starts to matter more. A careful driver can run larger tires longer. A heavy throttle driver will find the weak link sooner.
If you are running an AMC 20 rear axle, this is also where the two-piece axle shaft issue becomes more relevant. Bigger tires and more torque accelerate the failure mode on stock two-piece shafts.
Shop one-piece AMC 20 axle upgrades
6) Fuel Economy and Engine Cooling: The Slow Drift You Notice Later
This one sneaks up on people. Bigger tires often mean:
- More throttle to maintain speed
- Lower effective engine RPM at cruise
- More load on the engine and cooling system
The result can be worse fuel economy, higher coolant temps on long grades, and more heat in the transmission -- especially automatics. If your CJ already runs warm, bigger tires can push it into the red zone at higher road speeds.
Practical checkpoint: Watch coolant temp on a long hill at steady speed. If it creeps, you have a load problem or a cooling margin problem, and bigger tires reduced your margin.
Heat is not random. It is load made visible.
7) Speedometer and Odometer: Your Numbers Become Fiction
When tire diameter changes, your speedometer and odometer become inaccurate unless corrected. With larger tires, your speedometer reads slower than your actual speed. You are going faster than the gauge tells you. Your odometer accumulates miles slower than actual distance traveled, which means maintenance intervals based on mileage will come due sooner than the odometer suggests.
What it affects:
- Actual road speed
- Mileage tracking
- Fuel economy calculations
- Maintenance intervals if you follow the odometer
On a mechanical CJ speedometer, correction requires swapping the driven gear in the transmission tailshaft housing. The number of teeth on that gear determines your speedometer calibration. (TireSize.com speedometer calculator)
If your speedometer lies, your maintenance schedule lies too.
A Practical Decision Sequence Before You Buy Tires
- Define the goal. Clearance for trails, better ride on rough roads, or just the look.
- Choose tire size based on the system, not the photo. Consider gearing, brakes, and steering condition.
- Check baseline health. Steering play, wheel bearings, ball joints, brakes, and cooling condition.
- Plan supporting changes if needed. Gearing, brakes, caster correction, driveline angles. Start with the one that solves the real limitation, not the one that looks best in a parts cart.
- Upgrade in sequence. Fix the foundation first, then add capability.
For gearing decisions, see the full CJ gearing and tire size guide.
Measure first. Upgrade last.
Bigger Tires Are a Whole Vehicle Decision
Bigger tires are not wrong. In fact, they are pretty cool. There is just a lot to consider before upsizing them.
If you want more clearance and capability, commit to doing it as a system: steering tight, brakes confident, gearing appropriate, angles correct, and cooling stable. A CJ does not need to be overbuilt. It needs to be honest.
